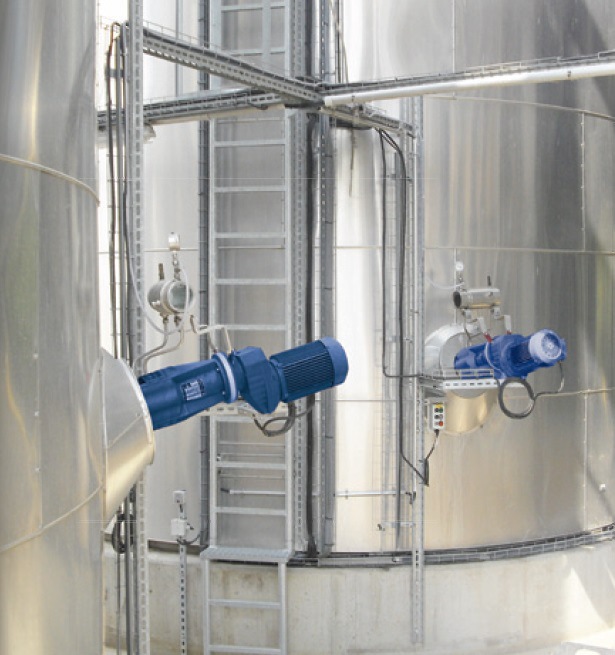

贮罐侧装搅拌器

介绍

储罐搅拌机。常用在食品、化工贮罐，发酵罐、UASB反应器污泥混合等。可用于10到500立方米黏性不大的储罐。

机械密封：碳化硅/氟橡胶；

螺旋桨： 3叶片轴向；

固定法兰：按标准法兰；

外加搅拌器可以执行紧急密封法兰以避免液体泄漏的机械密封损坏,直到密封可以。

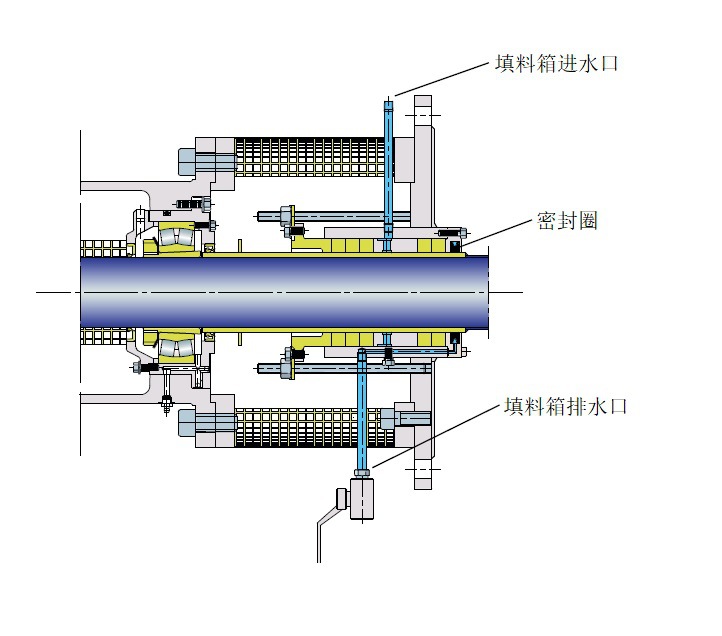

一个更复杂的系统,允许做维修工程(密封变化)不需要清空。

主要特点:

可用于10 - 500立方米贮罐；

电机功率:0,75千瓦到11 kW.；

转速：0~290转；

叶片外径300 - 600 mm；

碳化硅机械密封；

轴和螺旋桨叶材质316L不锈钢或304不锈钢。

introduce

Tank mixer. Commonly used in food, chemical storage tank, fermenter, UASB reactor sludge mixing, etc. Can be used for 10 to 500 cubic meters of storage tanks with low viscosity.

Mechanical seal: silicon carbide/fluorine rubber;

Propeller: 3 blades axial direction;

Fixed flange: according to the standard flange;

An additional stirrer can perform emergency sealing of the flange to avoid damage to the mechanical seal for fluid leakage until the seal can be repaired.

A more complex system that allows for repair works (seal changes) without the need for emptying.

Main features:

Can be used for 10-500 cubic meter storage tank;

Motor power :0,75 kW to 11 kW.

Speed: 0~290;

Blade diameter 300-600 mm;

Silicon carbide mechanical seal;

Shaft and propeller blades are made of 316L stainless steel or 304 stainless steel.
