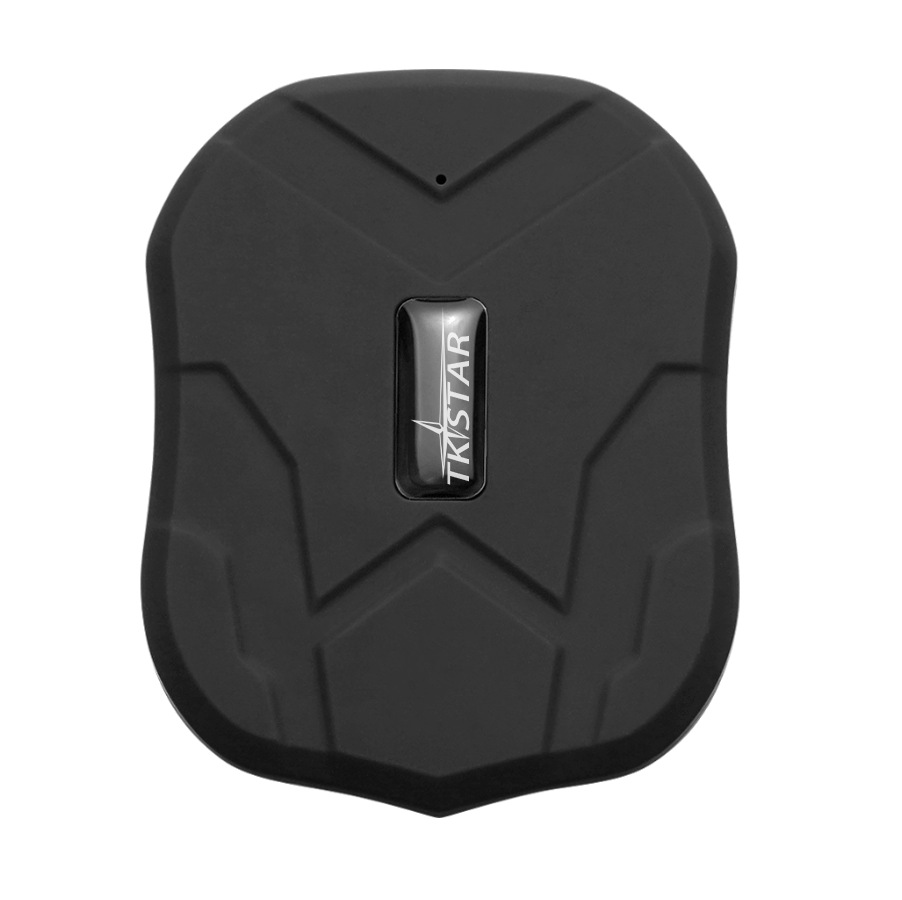

TKSTAR/WINNES 2G/4G TK905-MN 1500MAH GPS定位器sos按钮防水GPS设备儿童GPS定位器 精确到5米

定位更准确 ,适用汽车老人儿童定位跟踪

2G TK905-MN-1500毫安

 用途：

主要用于汽车/货车/客车/摩托车。

特点：

免安装，强磁粘贴，防震防掉防水防等

内置可充电聚合物电池，方便使用。

支持OEM/ODM设计，厂家直销。

主要功能：

1、双模定位，GPS卫星、AGPS基站双模定位，实时免费跟踪，定位精度可达到5米以内，全天候守护家人安全，无信号盲区；

2、免费跟踪平台，电脑，IOS/安卓 APP 手机 都可以查询，网页、应用平台、短信等多种方式实时查看位置，操作简单灵活，去过哪些地方也可以随时掌握。

3、体型小巧,防水设计，密封设计产品使用寿命更长

4：免安装,,可贴车低跟踪定位

5、电子围栏，超速，低电报警。

6、1500毫安超大容量电池,超长省电模式待机，内置大容量可充锂电池,一次充电可超长待机15天

7、用户可以直接下载手机客户端或者登陆平台输入设备背面的ID号作为用户名，初始密码为：ID号后四位

设备广泛应用于：

汽车租赁/小型车队管理，适用于车队、货车、车辆

户外运动定位。

儿童/老人/残障人士/贵重物品的监护。

个人安全。

人员管理。

跟踪定位。

尺寸：65mm x 49mm x 19mm

重量：58g

网络：GSM/GPRS

GPS灵敏度：-159dBm

GPS 精准度：5m

充电参数

110－220V input

  5V-1A output

电池：可充电 3.7V 1500毫安锂电池

待机时间：15天

启用时间

冷启动 45s

温启动 35s

热启动 1s

存储温度：-40°C to +85°C

工作温度：-20°C to +55°C

湿度：5%--95% non-condensing

Product Description

1. GPS+LBS Dual Positioning Ways:

If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS!

Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

2. Realtime Tracking:

You can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10seconds!

3. History Route Playback:

The APP and web server can record the uploaded data of each device up to 6 months.

4. Long Standby Time:

It has built-in 3.7V 15000mAh Li-ion battery, can standby up to 15days

5. Powerful Magnetic:

Equipped with magnet sticker, can be very easily installed.

6. IP65 Waterproof:

It can resist splash water but can't be put under water!

7. Overspeed Alarm:

This alarm works only under continuous positioning mode.When the unit speed exceeds the speedyou presetted, it will send message “speed alarm!” to the admin number every 5 minutes.

8. Shake Alarm:

After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start

working.It will send SMS “sensor alarm!” to the admin number when the unit get shocked.

9. Movement Alarm:

When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord",then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

10. low battery Alarm:

The device will send SMS “Low bat alarm!” to the SOS number and Admin number,when the device battery is low.

11. Geofence:

Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

12. Sleep Mode for Saving Battery:

Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode,GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

Features

✎Waterproof

✎6 months of historical routes

✎Strong magnetic: No installation required

✎Real-time positioning : Accuracy up to 5m

✎No distance limitation: Available worldwide

✎Support multiple phones to track at the same time

✎Multiple alarms: Movement alarm,, low battery alarm, geofence alarm, overspeed alarm

✎No subscription fees : APP/Web is free for life. Only need to buy a local card that supports 2Gnetwork

✎Multiple device management : We can create an account for you. Then you can manage all your trackers at the same time in the APP

Product Parameters

TK905MN-2G

Weight：58g

Accuracy：up to 5m

Battery Capacity：1500mAh

Standby Time：15 days,

Size：65mm x 49mm x19mm (2.56*1.93**0.75")

How does it work?

1. Tracking by SMS

If you want to find the tracker, all you have to do is call the tracker's SIM card or send a text message. The tracker SIM card sends you an SMS message with a location link from Google Maps.

2. Tracking via app / web

If you want real-time tracking in App / Web, all you have to do is set up APN and then log into APP / Web Platform.

Certificate(CE/FCC/MSDS)

11 years experience of OEM and ODM service，All our equipment has obtained CE and FCC certification, and the quality is safe and reliable.

Warranty

1.All products have been strictly Quality Checked in house before packing.

2.All products have been well packed before shipping.

3.One year warranty is provided for all models.We will bear maintenance cost during warranty.

Delivery

1.Sample and small order will be delivered within 2-3 working days after the receipt of payment.

2.For order over 500pcs or customized order,lead time will be 8-10 days after the receipt of payment.Please contact our sales to make sure the current inventory.

Access platform URL: www.mytkstar.net/ / APP: WINNES GPS
