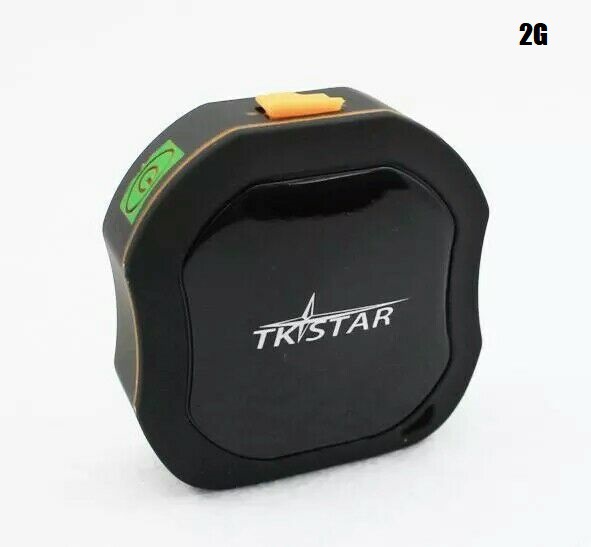

TKSTAR 2G TK109 GPS定位器

小通用型 人宠物汽车通用GPS定位器超长待机TK1000 定位精准 外贸板 全球通用！适用汽车 摩托车 电瓶车 定位跟踪

主要功能：

• 实时免费，GSM/GPS双模定位，定位精度可达到5米以内；
• 1000毫安超大容量电池
• 电子围栏，超速，低电报警。
• 免费平台，电脑，手机客户端，IOS/安卓 APP， 。

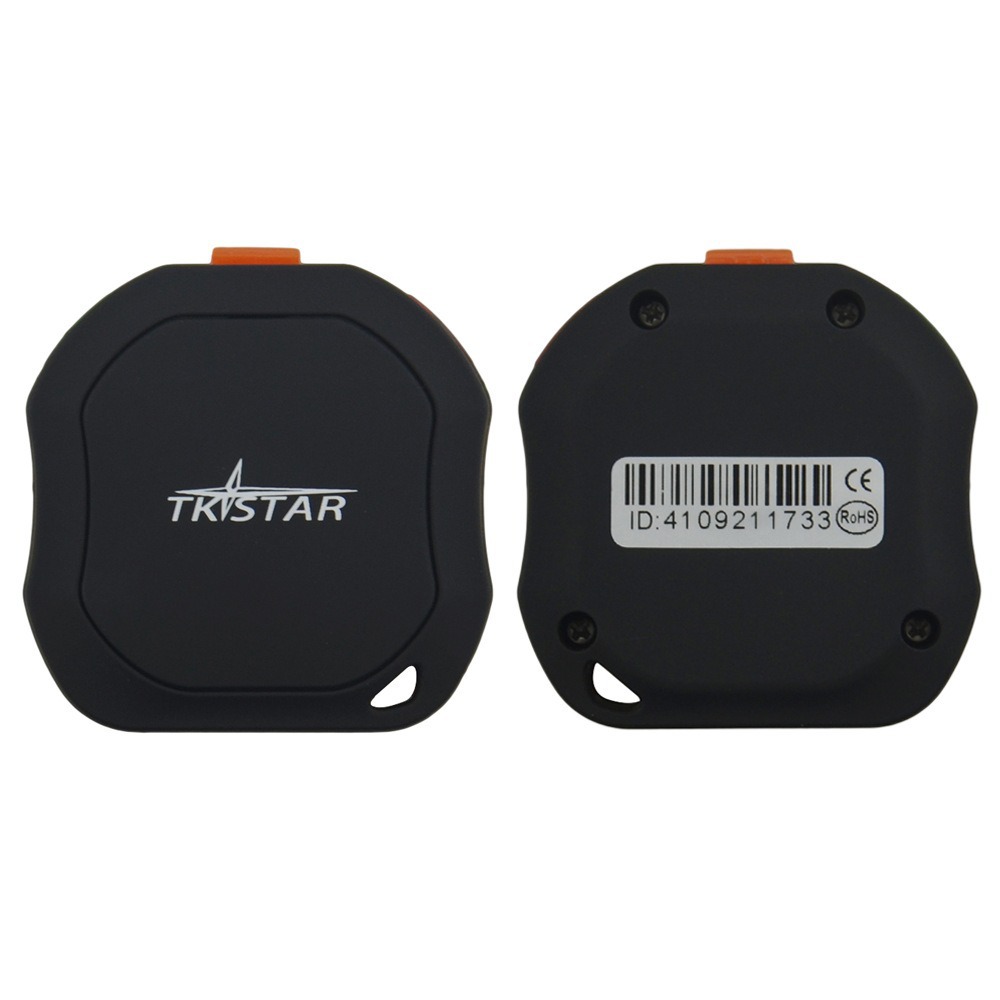

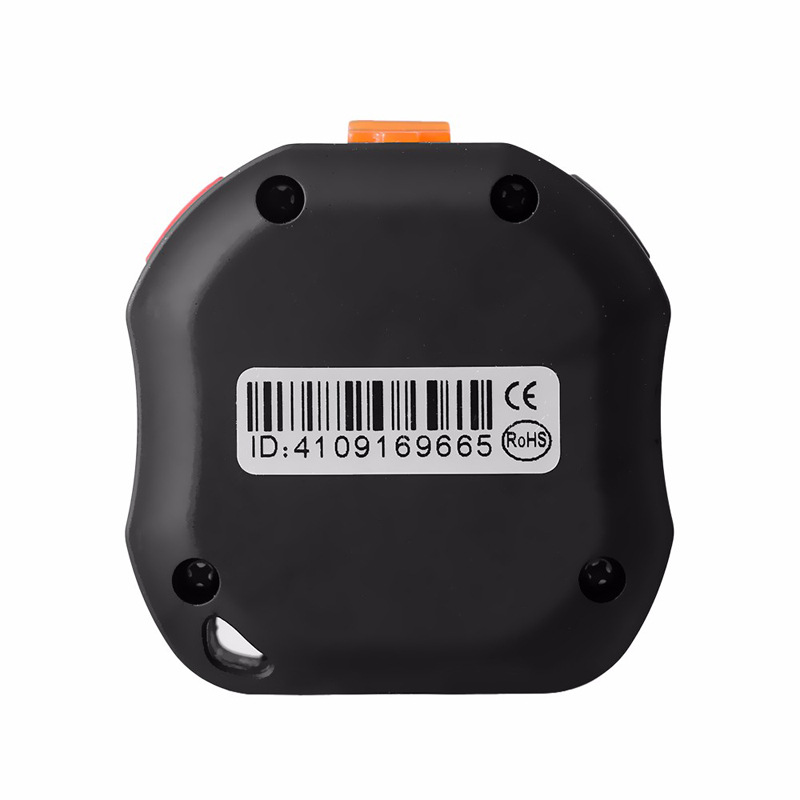

• 用户可以直接下载手机客户端或者登陆平台输入设备背面的ID号作为用户名，初始密码为：设备ID号码的后4位

 产品特点:

1、双模定位，GPS卫星、AGPS基站双模定位，定位精准，全天候守护家人安全，无信号盲区；

2、手机、电脑都可以查询，网页、应用平台、短信等多种方式实时查看位置，操作简单灵活，去过哪些地方也可以随时掌握。

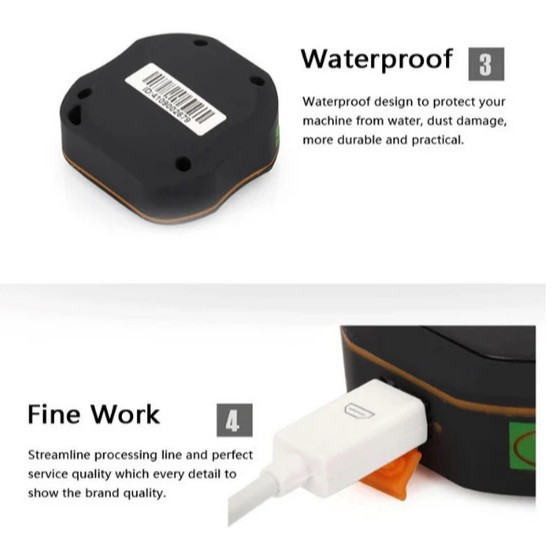

3、防水设计，密封设计产品使用寿命更长

4：内置强磁，免安装

应用领域

      汽车租赁/小型车队管理。

      户外运动

      儿童/老人/残疾人士/宠物/贵重物品的监护。

      个人安全。

      人员管理。

规格描述

尺寸: 50mm x 50mm x 20mm

重量: 50g

网络: GSM/GPRS

网络频段:850/900/1800/1900Mhz

GPS灵敏度-159dBm

GPS精确度:5米内

第一次的启动时间

冷启动 45-120秒

暖启动 35秒

热启动 1秒

车充电压

12—24V input

     5V  output

手持座充电压: 110－220V input   5V  output

电池：Chargeable changeable 3.7V 1000mAh Li-ion battery

待机时长:240小时

储藏温度:-40°C to +85°C

工作温度: -20°C to +55°C

湿度: 5%--95% non-condensing

Features:

1.GPS and LBS tracking service also named A-GPS, when tracker in underground or tunnel ,can get location by AGPS.

2.Real time tracking

Real time tracking it by platform . Also can support get location every 5 seconds, and the GPS accuracy is 5m .

3.Check the history of route on platform

Can check and replay within one year history of route of device ,by web platform

4.Power Saving Mode

The device go into standby mode when there isn't vibration for 3 minutes , it will go into working mode when it feel vibration

5.Google map on mobile

Check the location with google map on mobile.

6.Geofence and movement alert

Set up a geo-fence for the unit to restrict its movements within a district ,unit will send a message to the authorized numberwhen it breaches the district..

7.Overspeed alert

set up the speed as your requirement, and will get the alert when overspeed.

8.Low Battery Alarm

9.Waterproof IP66

• Network: GSM/GPRS

• GSM/GPRS module: MTK

• Band: 2G 850/900/1800/1900 MHz

• Communication protocol: TCP

• GPS chip: NXP

• Size: 50mm x 50mm x 20mm

• GPS accuracy: 5 – 50 meters

• Time to first fix: Cold status 45s, hot status 1s

• Car charger: 12 – 24 V (input), 5 V (output)

• Wall charger: 110 – 220 V (input), 5 V (output)

• Weight: 50 G

• Storage temperature :-40° to 85°C (-40° to 185°F)

• Operation temperature: -20° to 55°C (-4° to 131°F)

• Humidity: 5%--95% (non-condensing)

Free platform and multi-account management

★For life free platform, use our device, you can use APP and web pages for free for life.

★One account name can manage multiple devices at the same time. If you have multiple device IDs, you can use email registered user names and add IDs, or contact the platform customer service new user name and add device ID, so you can log in with an account name and add device ID. At the same time, check the location of multiple devices.

Certificate(CE/FCC/MSDS)

11 years experience of OEM and ODM service，All our equipment has obtained CE and FCC certification, and the quality is safe and reliable.

Warranty

1.All products have been strictly Quality Checked in house before packing.

2.All products have been well packed before shipping.

3.One year warranty is provided for all models.We will bear maintenance cost during warranty.

Delivery

1.Sample and small order will be delivered within 2-3 working days after the receipt of payment.

2.For order over 500pcs or customized order,lead time will be 15-20 days after the receipt of payment.Please contact our sales to make sure the current inventory.

Access platform URL: www.mytkstar.net/ / APP: WINNES GPS
