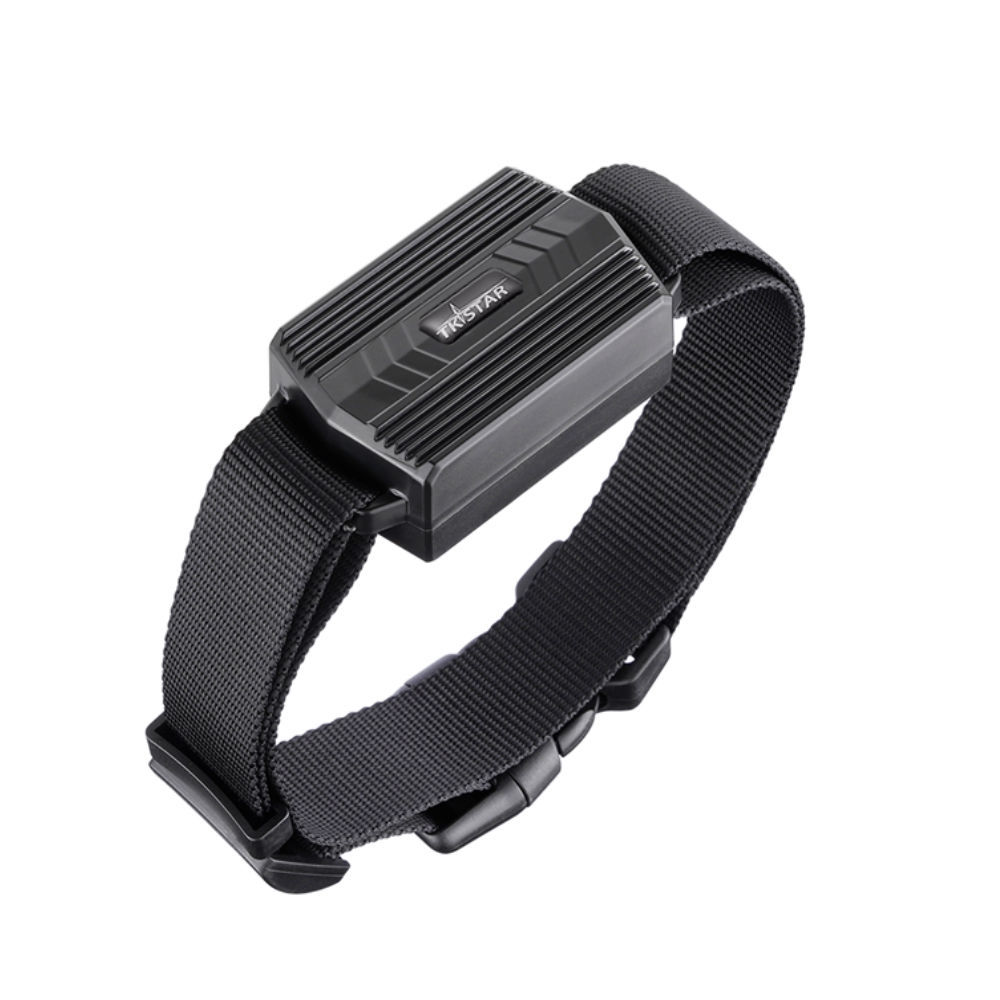

TK935 GPS动物跟踪装置，项圈长待机时间用于奶牛跟踪，可通过手机跟踪装置定位

TKSTAR TK935 GPS animal tracking device with collar long standby time for cow tracking

2G TK935-3000毫安

用途：

动物款主要用于农场里的牛马羊骆驼等大型动物

产品优势

1,防水

2.多种方式实施追踪：免费提供监控中心软件，覆盖全球地图，电脑实时追踪；手机查询地图；GOOGLE EARTH追踪。

3,省电模式

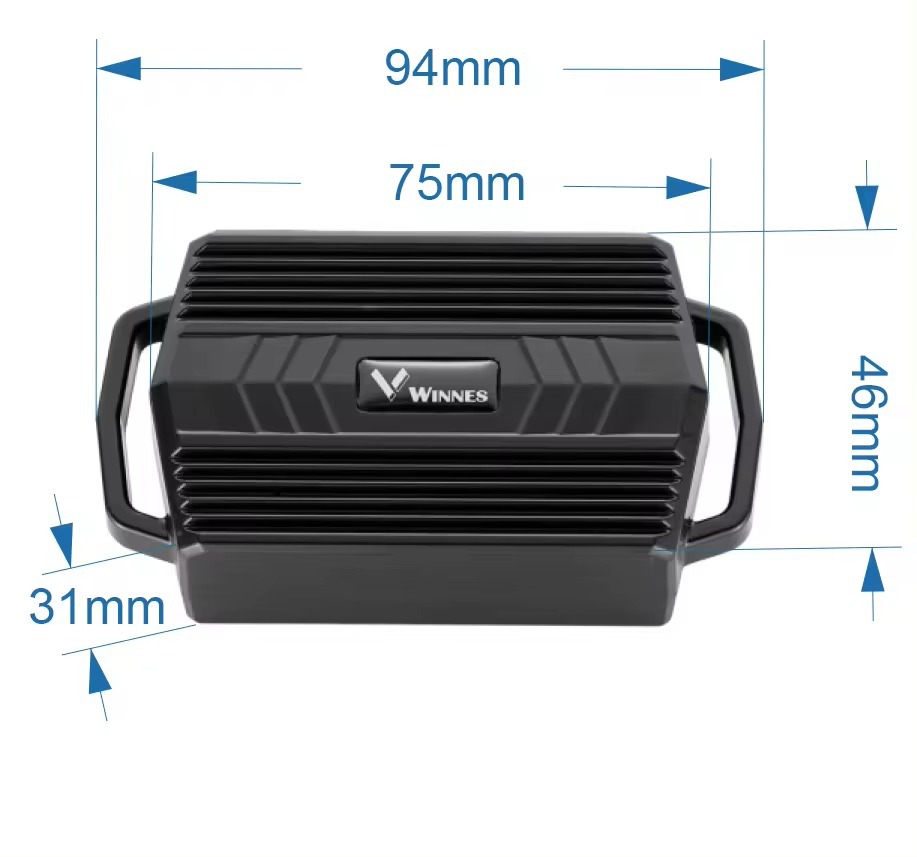

4,尺寸：94mm x 46mm x 31mm

5,支持无定位服务器条件下进行定位：可查询实时的经纬度/时间/速度，利用公共地图软件，通过手动输入经纬度即可查询实时位置信息

6,若你正查询的目标进入地下停车场或其它GPS盲区，跟踪器将向您报告目标最后被定位的位置信息。

7,定时定次跟踪功能。

8,授权号码添加/删除功能。

10,电子栅栏，可设定一个固定区域，超出固定区域即报警 。

11,移位报警：当追踪器停留下来时即可进行设防，一旦被移位即可向授权号码报警。

12,超速报警：可设定被监控目标按一定速度行驶，超过这个速度即可报警。

13,低电报警功能。

14.超长待机

15、用户可以直接下载手机客户端或者登陆平台输入设备背面的ID号作为用户名，初始密码为：ID号后四位

技术参数

1,GPS 芯片: SIRF3芯片

2.通道数:并行20通道

3,灵敏度: -159dBm

4,精确度:5米

5,定位时间:冷启动/热启动时间35/1秒

6,车充(12V输入,5V 输出); 座充 (110－220V输入，5V 输出)

7,可充/可更换式锂电池。

尺寸：94mm x 46mm x31mm

重量 :

净重: 116g(不带磁-动物款)

带子长：90cm

网络 GSM/GPRS

GPS灵敏度 -159dBm

GPS 精准度 5m

充电参数

110－220V input

 5V-1A output

电池：可充电 3.7V 3000毫安锂电池

待机时间： 50天

启用时间

冷启动 45s

温启动 35s

热启动 1s

存储温度： -40°C to +85°C

工作温度：-20°C to +55°C

湿度：5%--95% non-condensing

Item Functions

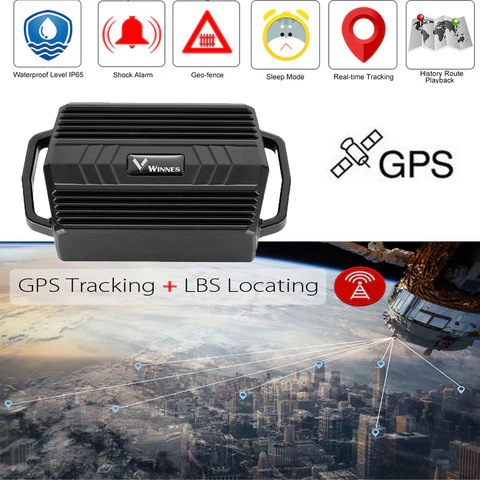

1. GPS+LBS Dual Positioning Ways: If the gps signal is good, the device will locate via gps satellite, if not, the device will locate via LBS! Under GPS locating mode, the accuracy is 5-10 meters, under LBS locating mode, the accuracy is 100-1000 meters!

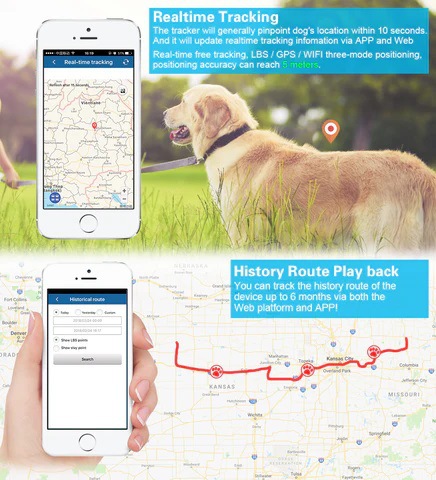

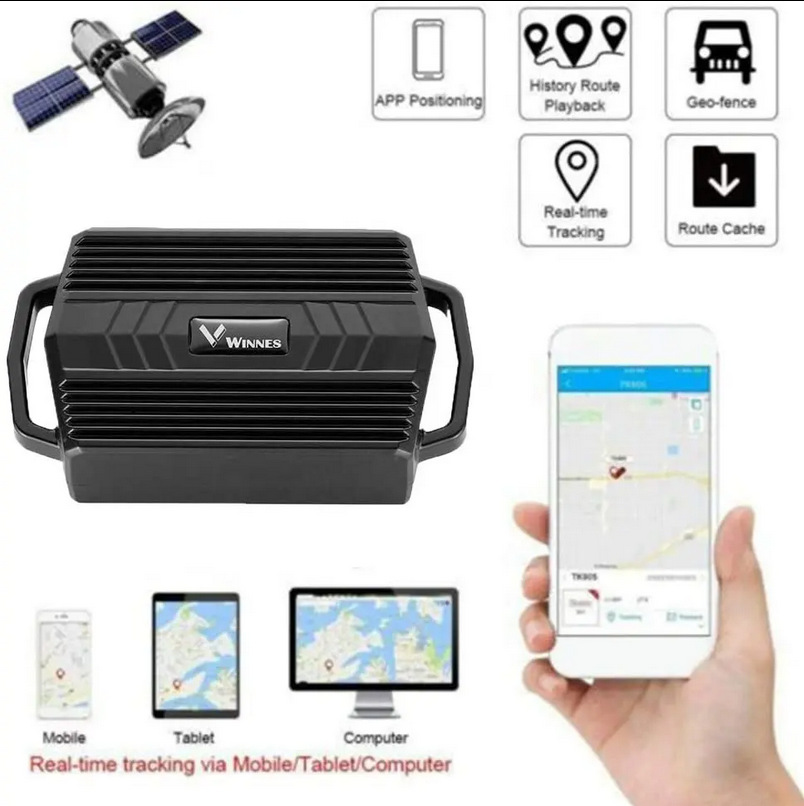

2. Realtime Tracking: You can realtime track the device on google maps via mobilephone, tablet and computer, and the minumum data upload interval is 10 seconds!

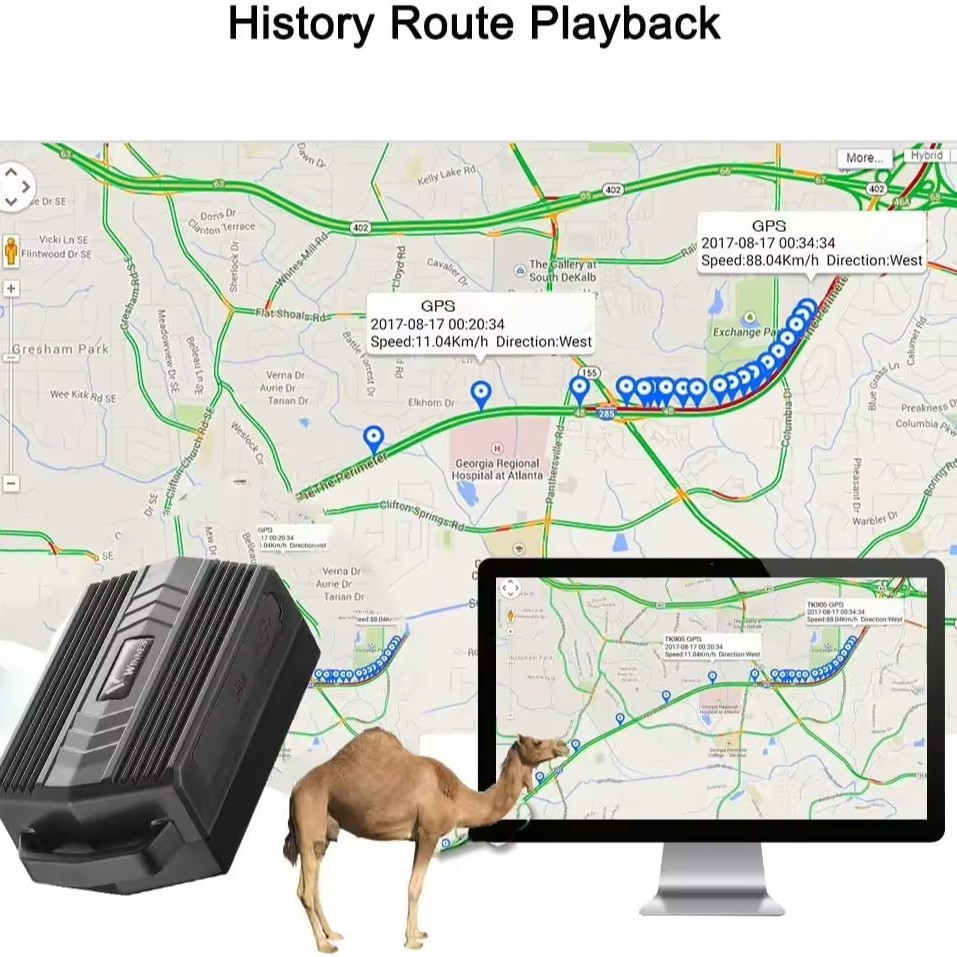

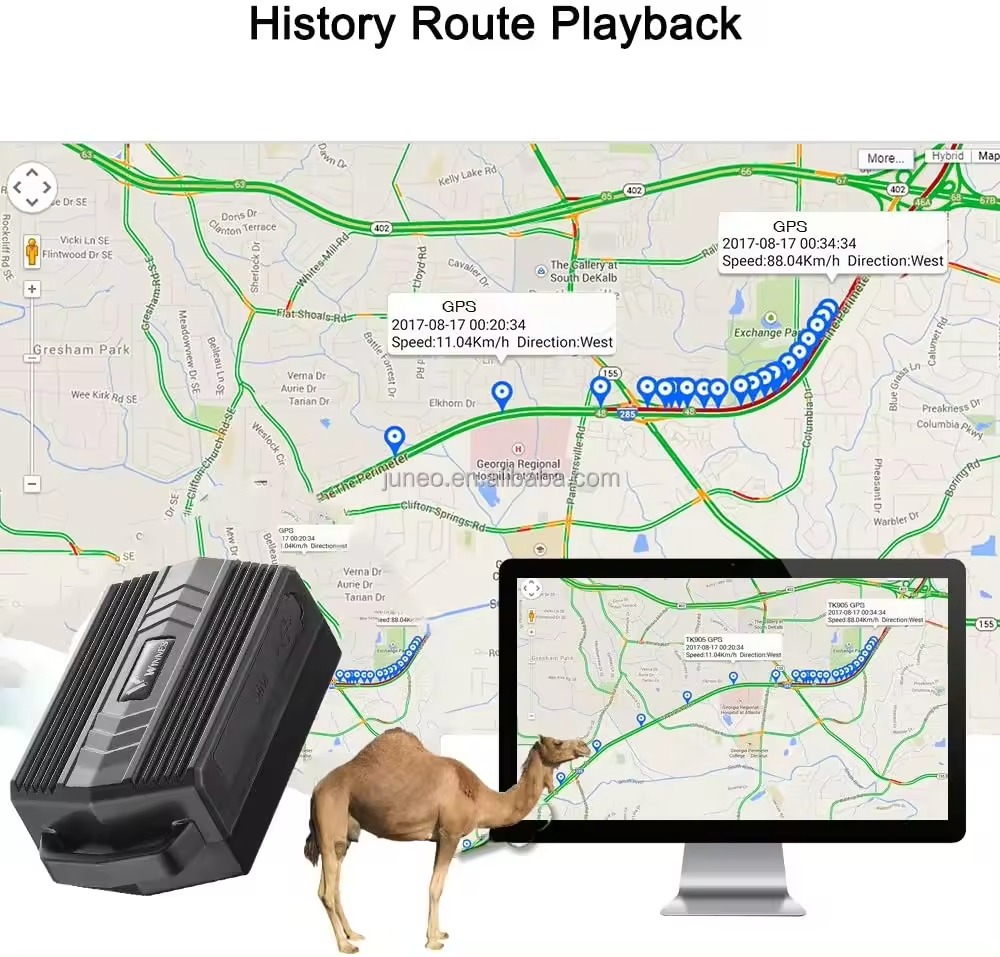

3. History Route Playback: The APP and web server can record the uploaded data of each device up to 6 months.

4. Long Standby Time: It has built-in 3.7V 3000mAh Li-ion battery, can standby up to 100 days.

5. Powerful Magnetic: It has 5pcs built-in magnets,with super strong powerful magnetic, can be very easily installed.

6. IP65 Waterproof: It can resist splash water but can't be put under water!

7. Overspeed Alarm: This alarm works only under continuous positioning mode.When the unit speed exceeds the speedyou presetted, it will send message “speed alarm!” to the admin number every 5 minutes.

8. Shake Alarm: After you did the shake alarm setting,please keep the tracker being stationary for 5 minutes, then this function will start working.It will send SMS “sensor alarm!” to the admin number when the unit get shocked.

9. Movement Alarm: When the units stays immobile in a place for 10 minutes, the user can set up the movement alarm by this command "move+passord", then in case the device moved 500m it will send alarm SMS "Move Alarm+Latitude and longitude" to the authorized number.

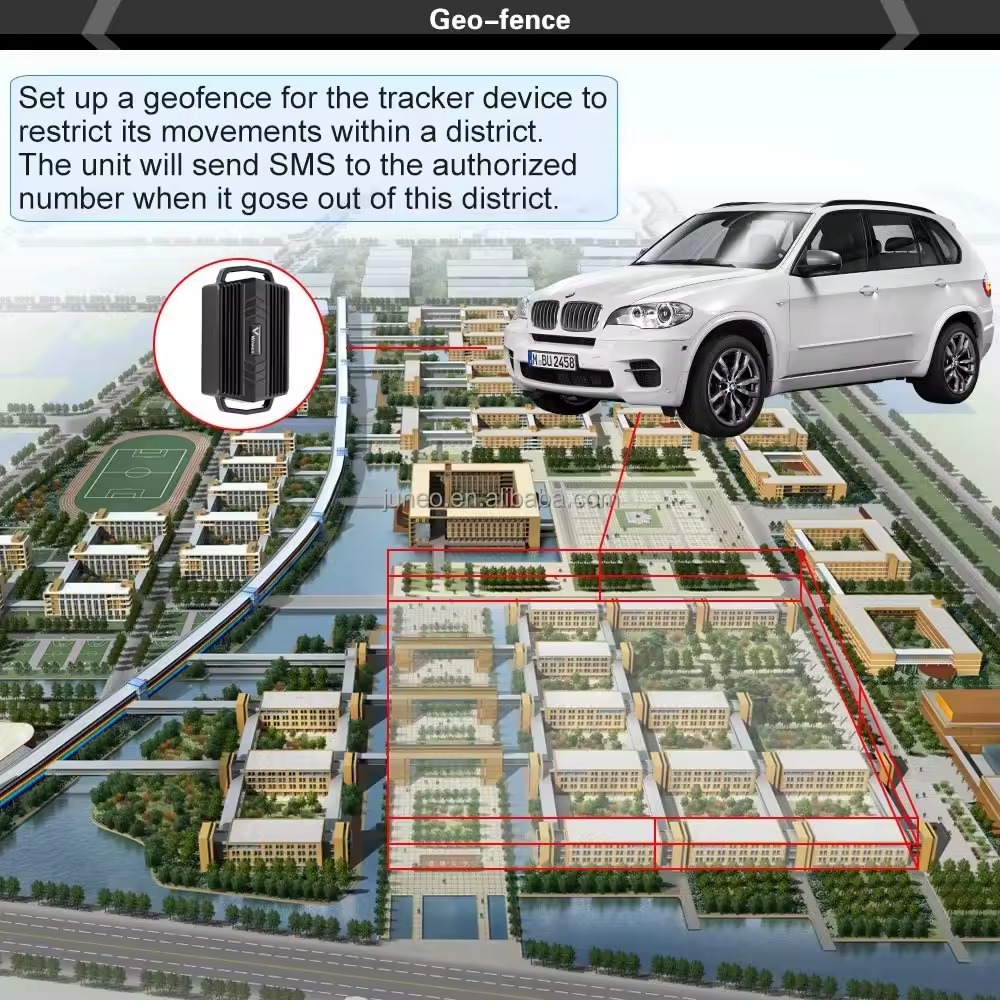

10. low battery Alarm: The device will send SMS “Low bat alarm!” to the SOS number and Admin number,when the device battery is low. 11. Geofence: Set up a geofence for the tracker to restrict its movements within a district. The unit will send alarm information to APP and web server when it goes out of or get in this district.

12. Sleep Mode for Saving Battery: * Sleep by time mode: After did this setting, tracker will only work for 5 minutes after being waked up, and back to sleep mode, GPS will shut off and GSM will works in low consumption mode. SMS, call will can wake up the tracker. * Sleep by shock sensor mode: After did this setting, if no shock for 5 minutes, the tracker will work under "sleep by shock" mode, GPS will shut off, GSM will works in low consumption. Vibration, SMS, call will can wake up the tracker.

Features

✦APP alarm

✦Waterproof

✦6 months of Historical Routes

✦Real-time positioning（Accuracy up to 5m）

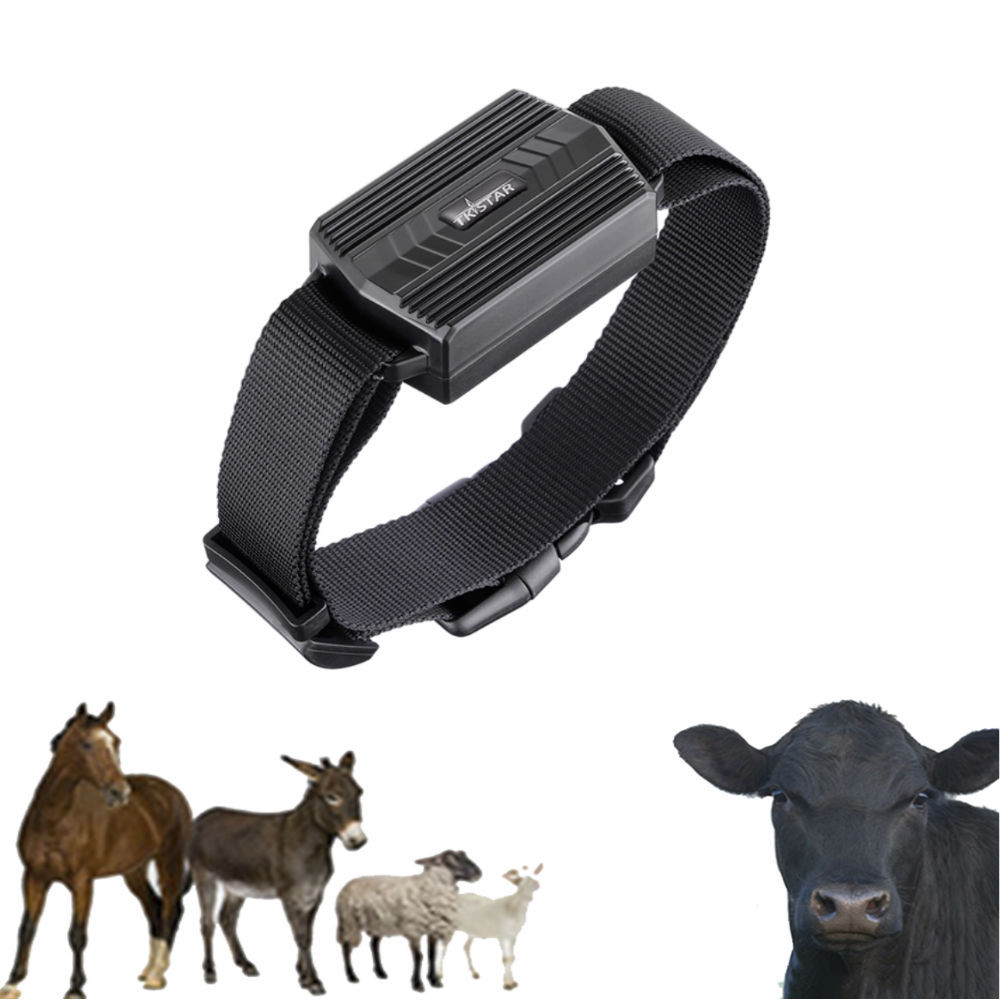

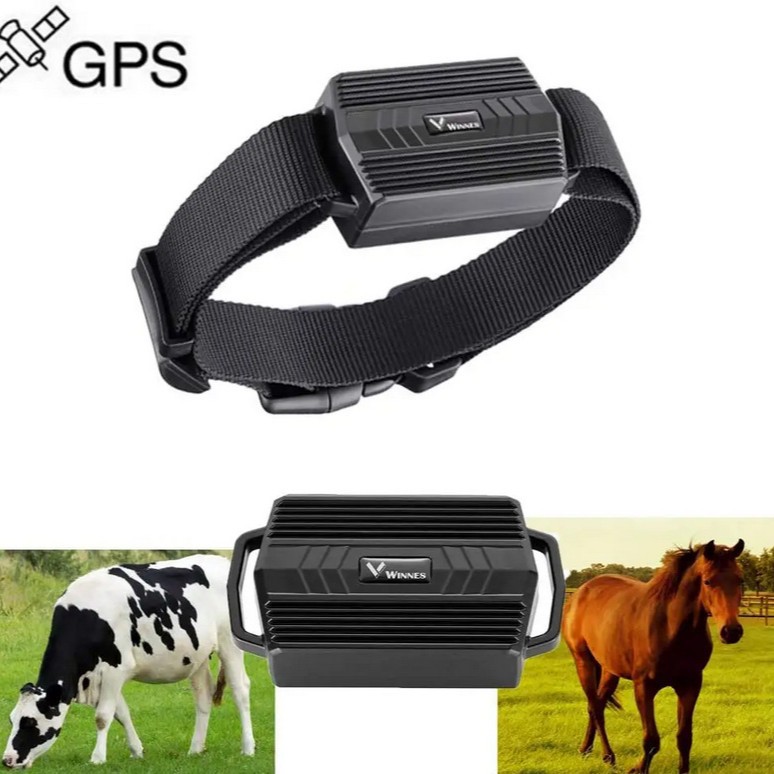

✦Suit for Animal Version: FOR Farm Big Animals--

Cow/Horse/Camel/Sheep/Etc

✦Multiple Alarms( low battery alarm/ overspeed alarm)

✦Compatible with Android / iOS application, web / WAP

✦Geo-fence （You will be notified when your dog crosses the fence）

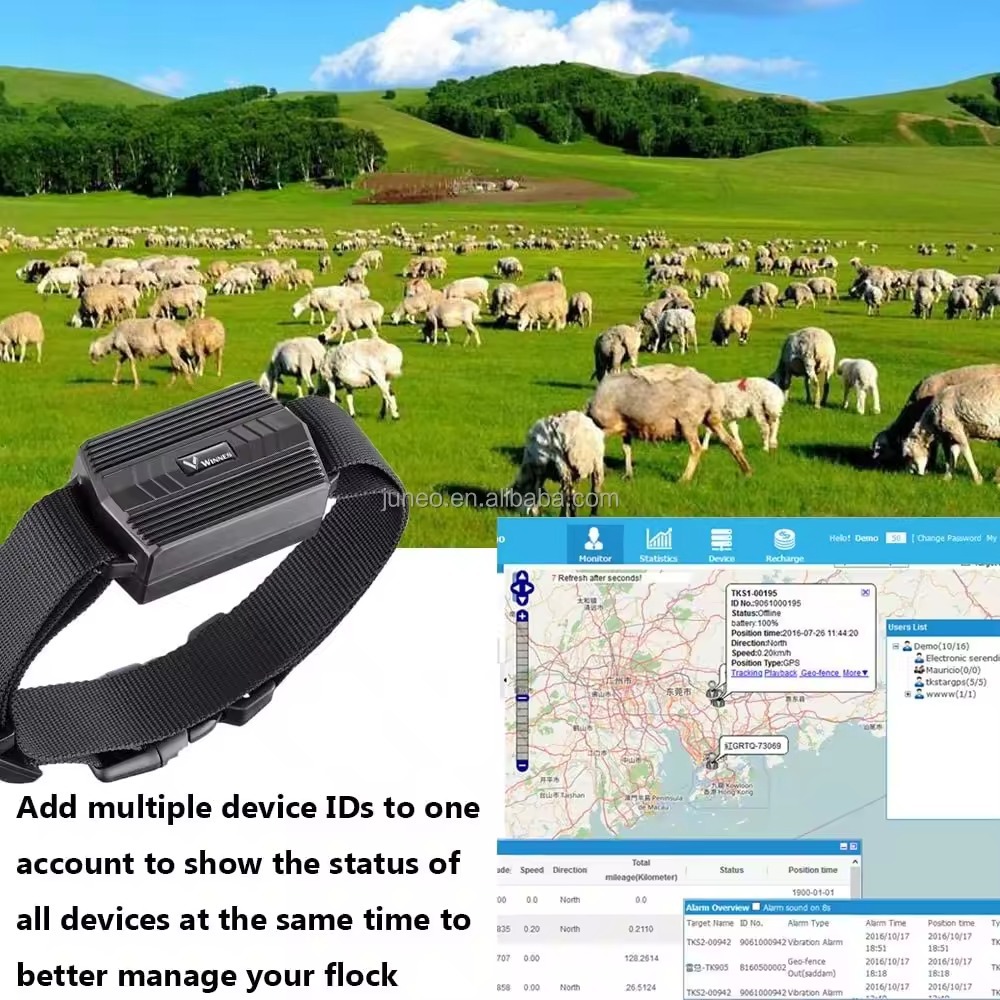

✦Multiple Device Management(If you have multiple trackers, you can contact us to create an account for you. This way you can manage all your trackers at the same time in the APP. Convenient for you to use)

Product Parameters

• Weight：116g
• Accuracy：up to 5m
• Battery Capacity：3000mAh
• Standby Time：Up to 50 days
• Size：75mm x 46mm x 31mm (2.95*2.8*1.22")

Certificate(CE/FCC/MSDS)

11 Years Experience Of OEM And ODM Service，All our equipment has obtained CE and FCC certification, and the quality is safe and reliable.

Warranty

1.All products have been strictly Quality Checked in house before packing.

2.All products have been well packed before shipping.

3.One year warranty is provided for all models.We will bear maintenance cost during warranty.

Delivery

1.Sample and small order will be delivered within 2-3 working days after the receipt of payment.

2.For order over 500pcs or customized order,lead time will be 8-10 days after the receipt of payment.Please contact our sales to make sure the current inventory.
